Electrics |
Magnetos and Ignition Timing
|
Model |
MAC |
Viper |
Viper |
MSS |
Venom |
Venom |
Thruxton |
|
Lucas Anti Clock |
K1F Auto |
K1F Man |
K1F Auto |
K1F Auto |
K1F Auto |
K1F Man |
K1FC Man |
|
BTH Anti Clock |
- |
BKH1 Man |
- |
- |
- |
BKH1 Man |
- |
|
Timing Unit - Lucas |
YE5 |
|
JY16A |
JY16A |
JY16A |
|
|
|
Points gap |
0.012” – 0.015” |
0.012” – 0.015” |
0.012” – 0.015” |
0.012” – 0.015” |
0.012” – 0.015” |
0.012” – 0.015” |
0.012” – 0.015” |
|
Coil Ignition, contact breaker |
|
6CA |
6CA |
6CA |
6CA |
6CA |
6CA |
|
Coil - Lucas |
|
MA6 |
MA6 |
MA6 |
MA6 |
MA6 |
MA6 |
|
Primary Coil Resistance Max-Min |
|
1.8-2.4 Ohms |
1.8-2.4 Ohms |
1.8-2.4 Ohms |
1.8-2.4 Ohms |
1.8-2.4 Ohms |
1.8-2.4 Ohms |
|
Points gap |
|
0.014” – 0.016” |
0.014” – 0.016” |
0.014” – 0.016” |
0.014” – 0.016” |
0.014” – 0.016” |
0.014” – 0.016” |
|
Timing BTDC |
|
38 |
38 |
36 |
38 |
38 |
38 |
Lighting Equipment
|
Model |
MAC |
Viper |
Viper |
MSS |
Venom |
Venom |
Thruxton |
|
Dynamo |
|
|
|
|
|
|
|
|
Miller 6v 35W Anti Clock Rotation mid to 61? |
DVR |
DVR |
DVR |
DVR |
DVR |
DVR |
- |
|
Miller 6v 60W Anti Clock Rotation mid 61 on |
- |
D6 |
D6 |
D6 |
D6 |
D6 |
D6 |
|
Lucas dynamo Anti clock rotation |
|
EL3 |
EL3 |
EL3 |
EL3 |
EL3 |
EL3 |
|
Miller Headlight to mid 56 |
70CV |
|
70CV |
70CV |
70CV |
|
|
|
Miller Headlight mid 56 on -Nacelle |
|
180CV |
180CV |
180CV |
180CV |
180CV |
|
|
Lucas Headlight |
|
SS700P |
SS700P |
|
SS700P |
SS700P |
SS700P |
|
Main Bulb |
6v 30/21 W Bifocal |
6v 30/21 W Bifocal |
6v 30/21 W Bifocal |
6v 30/21 W Bifocal |
6v 30/21 W Bifocal |
6v 30/21 W Bifocal |
6v 30/21 W Bifocal |
|
Parking bulb |
6-v 3W. M.E.S. |
6-v 3W. M.E.S. |
6-v 3W. M.E.S. |
6-v 3W. M.E.S. |
6-v 3W. M.E.S. |
6-v 3W. M.E.S. |
6-v 3W. M.E.S. |
|
Rear Lamp |
6-v, 6W. S.C.C. |
|
|
6-v, 6W. S.C.C. |
|
|
|
|
Rear and Stop |
6-v, 18/6W |
6-v, 18/6W. |
6-v, 18/6W |
6-v, 18/6W |
6-v, 18/6W |
6-v, 18/6W |
6-v, 18/6W |
|
Speedometer |
6-v, .18 M.B.C. |
6-v, .18 M.B.C. |
6-v, .18 M.B.C. |
6-v, .18 M.B.C. |
6-v, .18 M.B.C. |
6-v, .18 M.B.C. |
6-v, .18 M.B.C. |
|
Battery |
6v, 13 A hr. |
6v, 13 A hr. |
6v, 13 A hr. |
6v, 13 A hr. |
6v, 13 A hr. |
6v, 13 A hr. |
6v, 13 A hr. |
Dynamo Belts
|
Part Number |
Description |
Length |
Replacement |
|
E16/3 |
Dynamo "V" Belt - 45w |
485mm |
Fenner Z480 or Z485 |
|
E16/4 |
Dynamo "V" Belt - 60w |
495mm |
Fenner Z495 |
|
E16/5 |
Dynamo "V" Belt - 60w |
510mm |
Fenner Z510 |
Battery
|
|
6 Volts |
12 Volts |
||
|
|
Specific Gravity |
Voltage |
Specific Gravity |
Voltage |
|
Fully Charged |
1.285 – 1.3 |
6.3 |
1.285 – 1.3 |
12.6 |
|
Partly Charged |
1.210 |
6.15 |
1.210 |
12.3 |
|
Discharged |
1.15 |
5.7 |
1.15 |
11.4 |
|
Charge Voltage |
7.8v |
|
15.6 |
|
Downloads
|
Description |
File type |
File Size |
Download |
|
Lucas Dynamo Workshop Instructions |
|
225KB |
Click here |
| Lucas Magneto Workshop Instructions |
PDF
|
349KB | Click here |
|
Lucas Magneto Specifications |
|
1655KB |
Click here |
| BTH Magneto Instructions |
PDF
|
542K | Click here |
|
1967 Lucas Velocette Equipment and Service Parts Brochure |
|
794KB |
Click here |
| Lucas ATD specifications |
PDF
|
682KB | Click here |

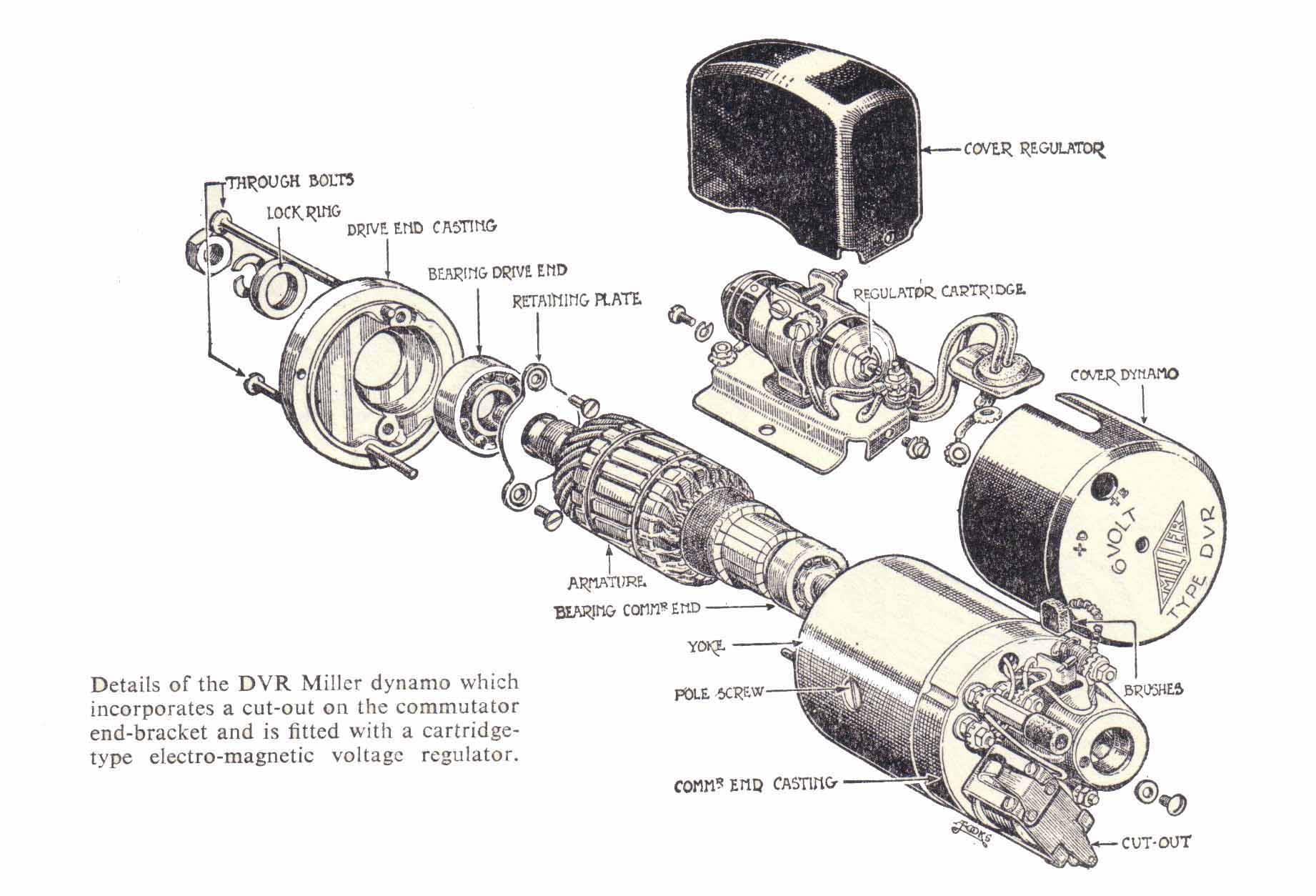

| Exploded view of a Miller dynamo |
 JPEG
|
181KB | Click here |
